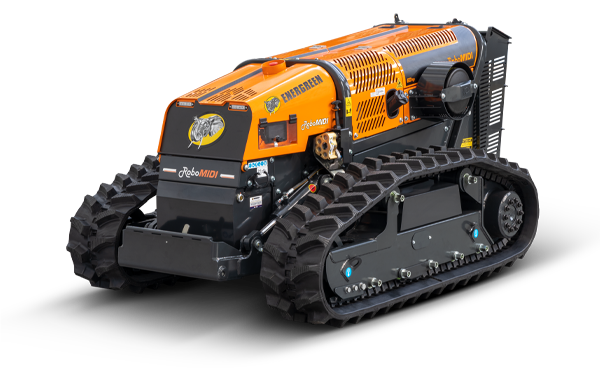

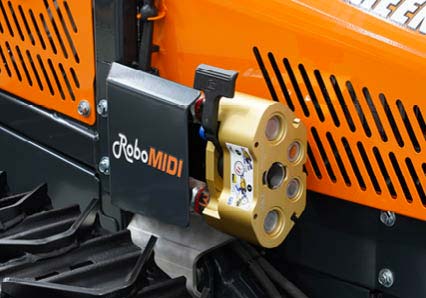

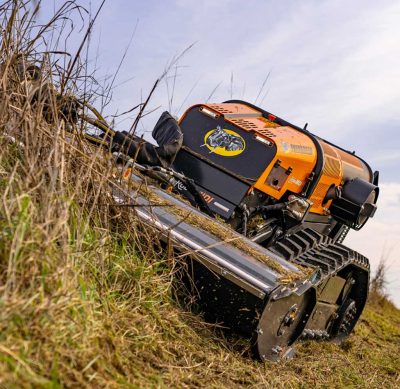

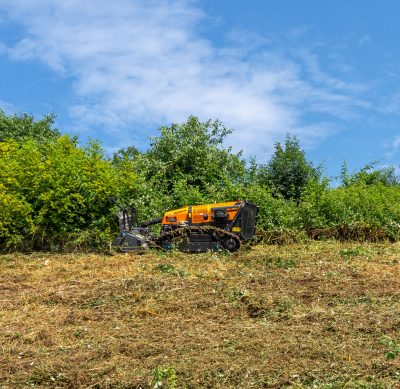

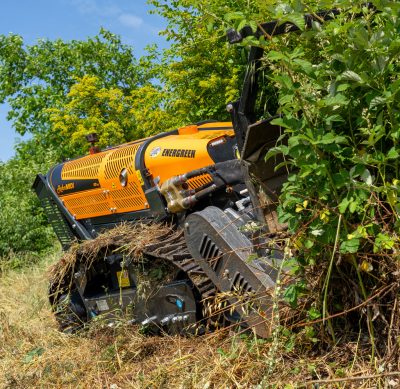

RoboMIDI is a multifunction robo able to work in the narrowest areas, on slopes up to 55° or where the access is very difficult. Equipped with a 60 CV Stage V diesel engine and two double effect hydraulic functions it can carry various tools like a cutting head, a forestry head, a stump grinder, a bucket etc.
RoboMIDI , thanks to its power, performances, reliability and robustness, is completely different from other remote-controlled machines.

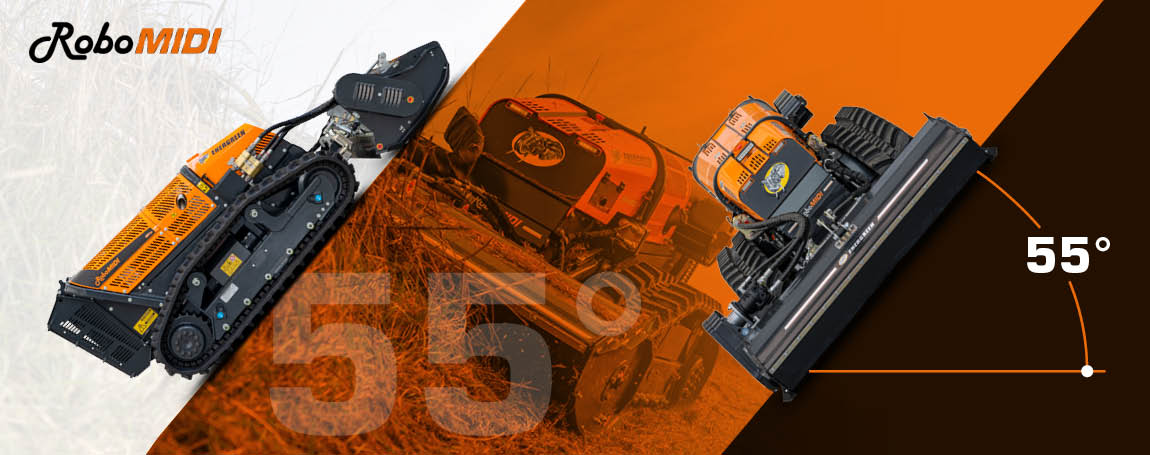

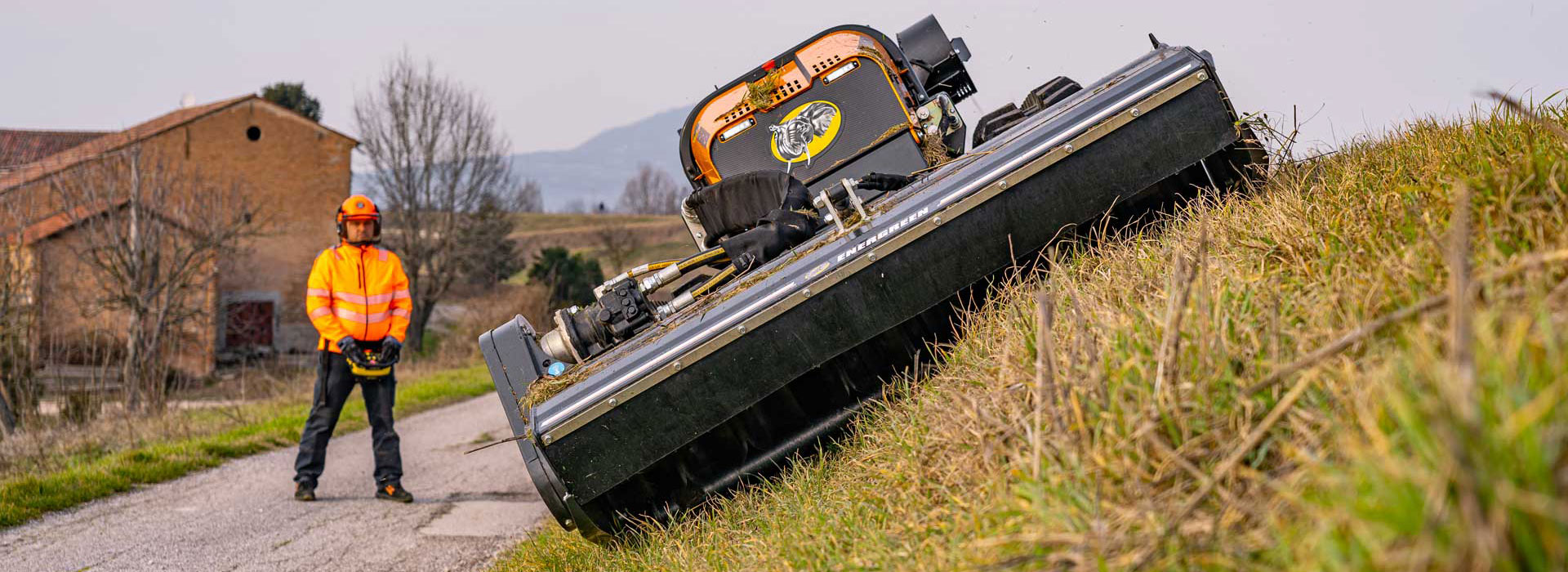

The new tracks profile allows a larger ground contact surface of the machine; the hydraulic tensioning system make RoboMIDI a safe machine for working on slopes up to 55° in all directions: hill and mountain areas, embankments, cliffs, etc. and in all those environments where the adherence is very low and a machine for high slopes is required.
RoboMIDI is a remote-controlled tools carrier machine, able to work in complete safety in dangerous areas, with slopes up to 55° in any direction. The exceptional stability of this multifunction robo is given by a low center of gravity, a special oil sump and rubber tracks for an excellent grip.

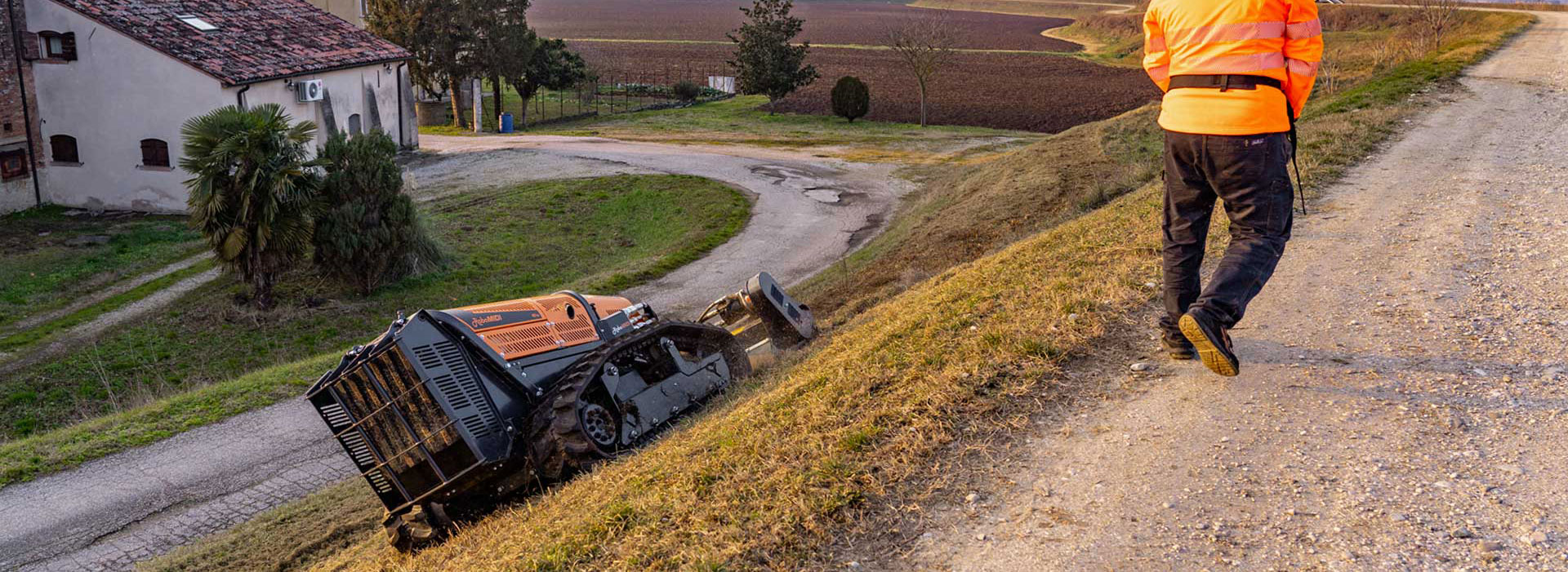

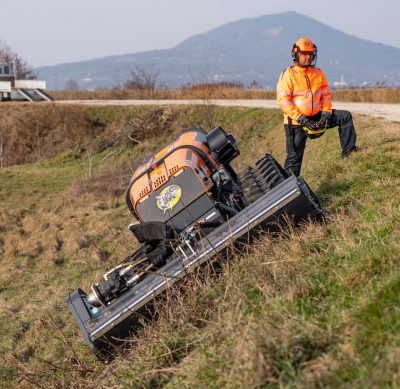

The safety of operators is one of our targets; the use of the remote control with up to 492 ft range avoids several work risks to the operator: noise, vibrations, exposure to exhaust emissions, spray of cut vegetation or debris, etc.

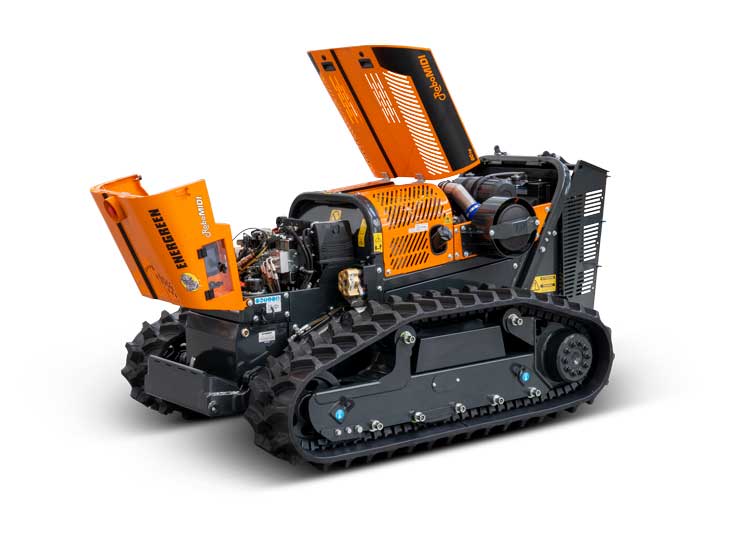

RoboMIDI is built with an ultra-resistant steel to ensure a long duration; all the components are tested and certified to ensure the maximum reliability and safety.
Born to satisfy the most difficult needs, RoboMIDI can easily be defined a remote-controlled grass cutting machine with power and performances comparable to a classic grass cutting arm for a tractor. These fundamental characteristics distinguish this machine from any other robot: power, reliability, strength and high efficiency.
Super rubber tracks – ** Steel tracks

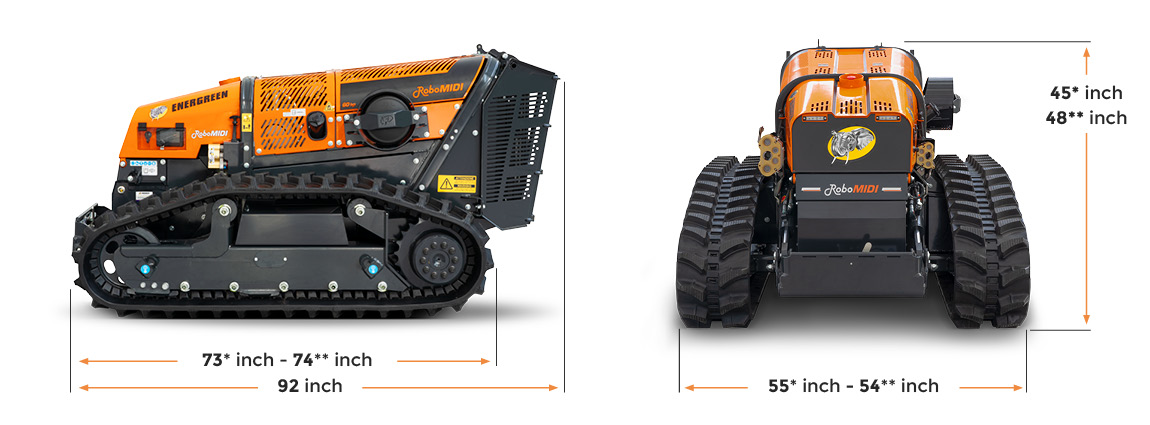

Technical Data RoboMIDI | |
---|---|
Maximum Slope | 55° |
Transmission | Hydrostatisc |
Low Range Speed | 0 - 1.86 mph |
High Range Speed | 0 - 3.72 mph |
Machine Weight with Steel Tracks | 3792 lbs |

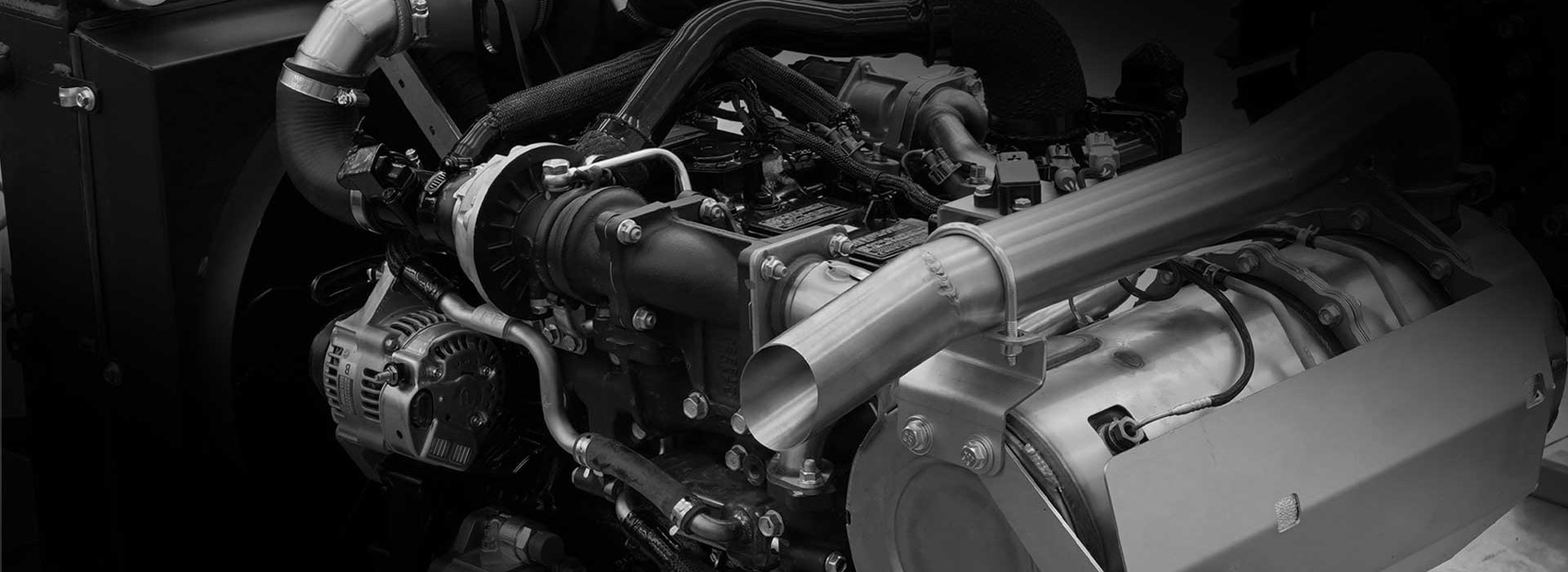

Engine Technical Data RoboMIDI | |
---|---|
Brand | Yanmar |
Model | 4 Cylinder Diesel |
Power | 60 HP (44,7 kW) EPA Tier 4f |
Fuel Tank Capacity | 8 gal |
Working RPM | 2700 rpm |

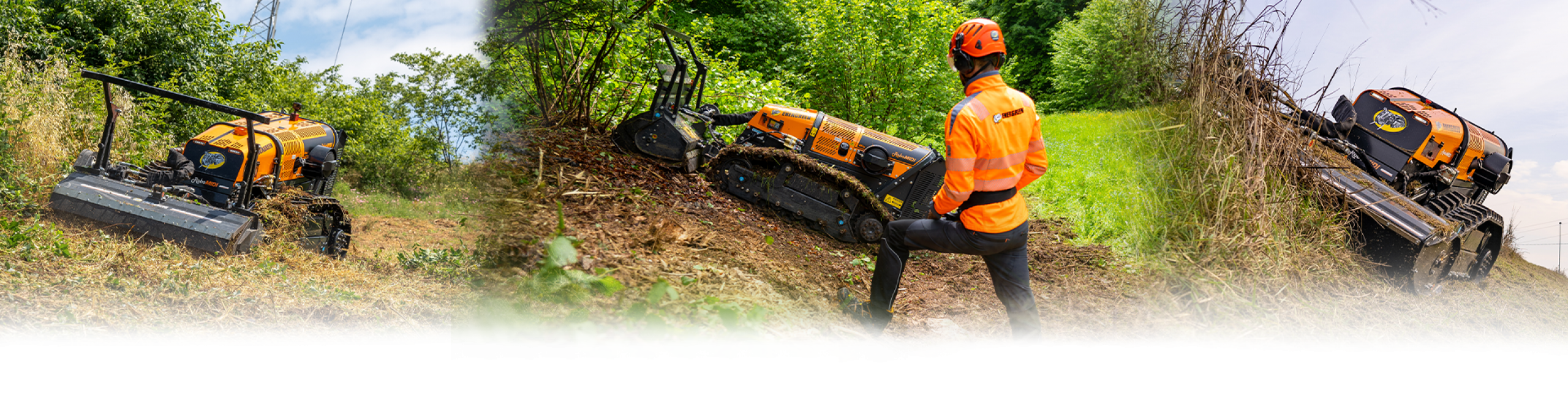

A selection of professional equipment has been specially developed for the use and control of RoboMIDI remote controlled multifunction robo.
THE LIGHTWEIGHT REMOTE CONTROL, INTUITIVE AND EASY TO MASTER
Two large joysticks provide precise control of movement, steering and flailhead height. The simple layout of the controls allows the operator to start working immediately. Speed and steering control can also be adjusted to better satisfy personal needs.
Remote Control Technical Data | |
---|---|
Brand | Autec |
Radio Frequency | 915 Mhz (US) |
Working Range | 492 ft |
Joystick | Proportional |
Battery | Rechargeable |
Autonomy | 18 h |
Overall Dimensions | 10,23 x 7,87 x 7,48 inch |
Weight | 4.40 lbs |
