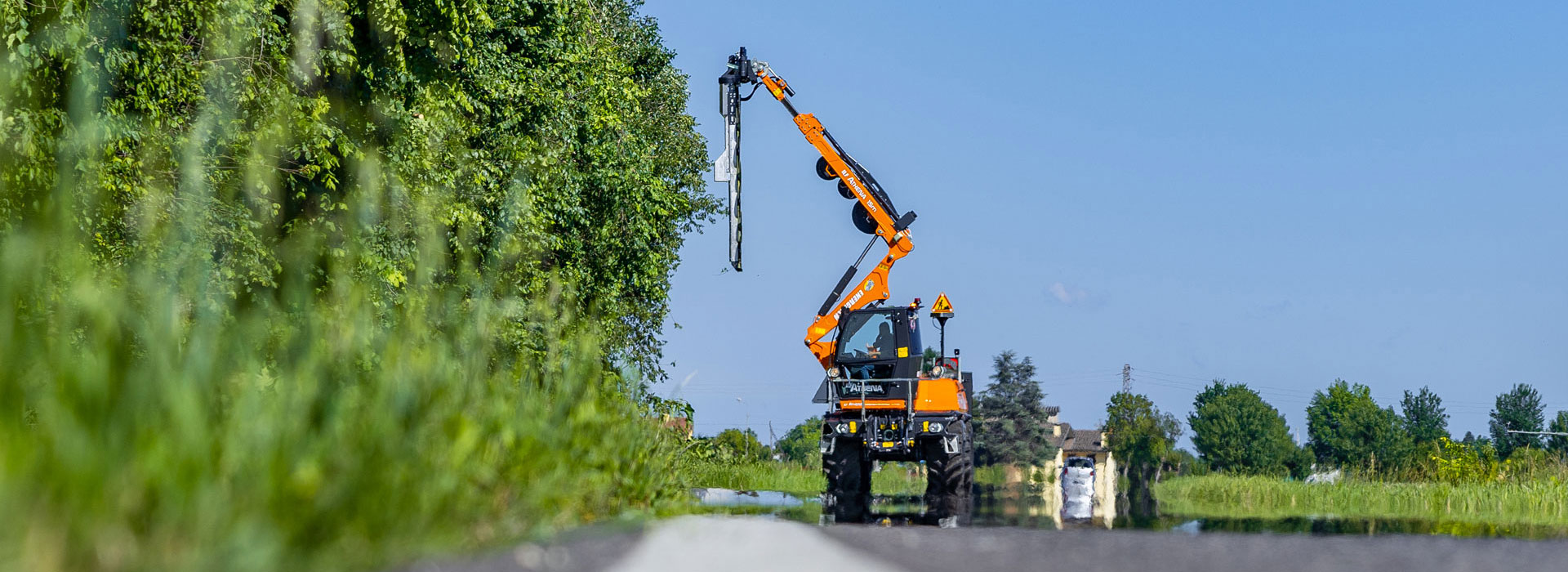

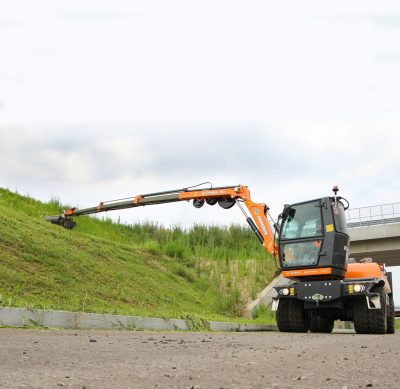

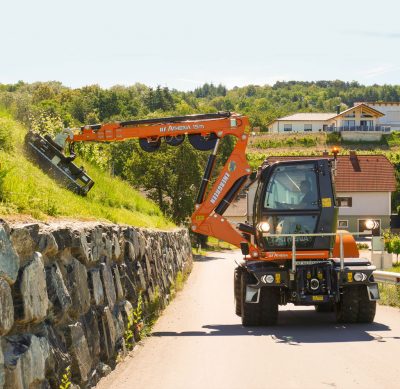

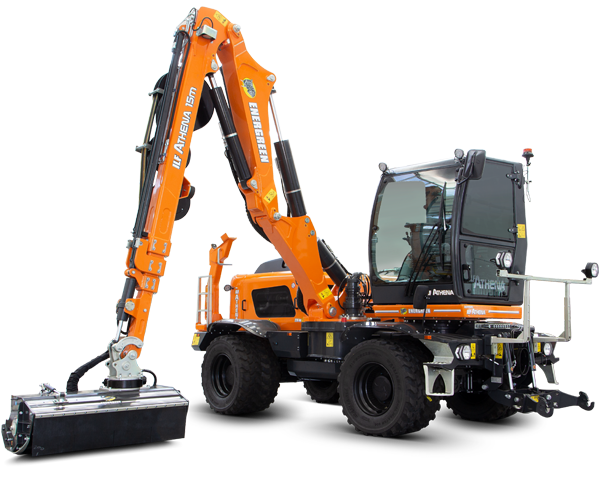

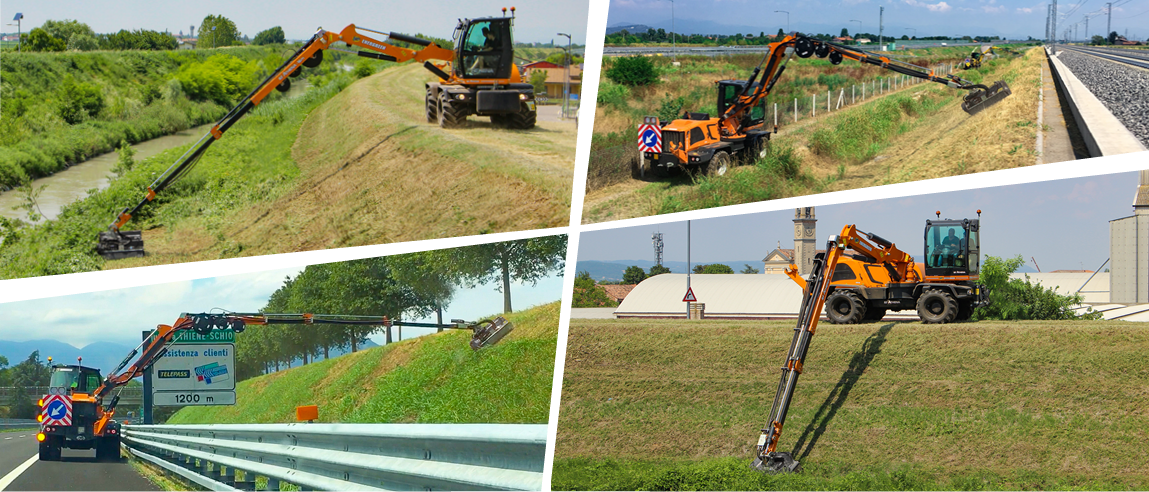

Energreen ILF ATHENA is a professional brushcutter machine which, thanks to its innovative technological contents, offers unparalleled performance, great flexibility and operational safety. The machine is equipped with a telescopic arm up to 50 feet, where in addition to the classic mulching head, it is possible to apply several tools. At the front it is possible to equip the machine with a lifter with PTO or with a DIN plate, in order to apply a front accessory to be used simultaneously with the brush cutter arm.

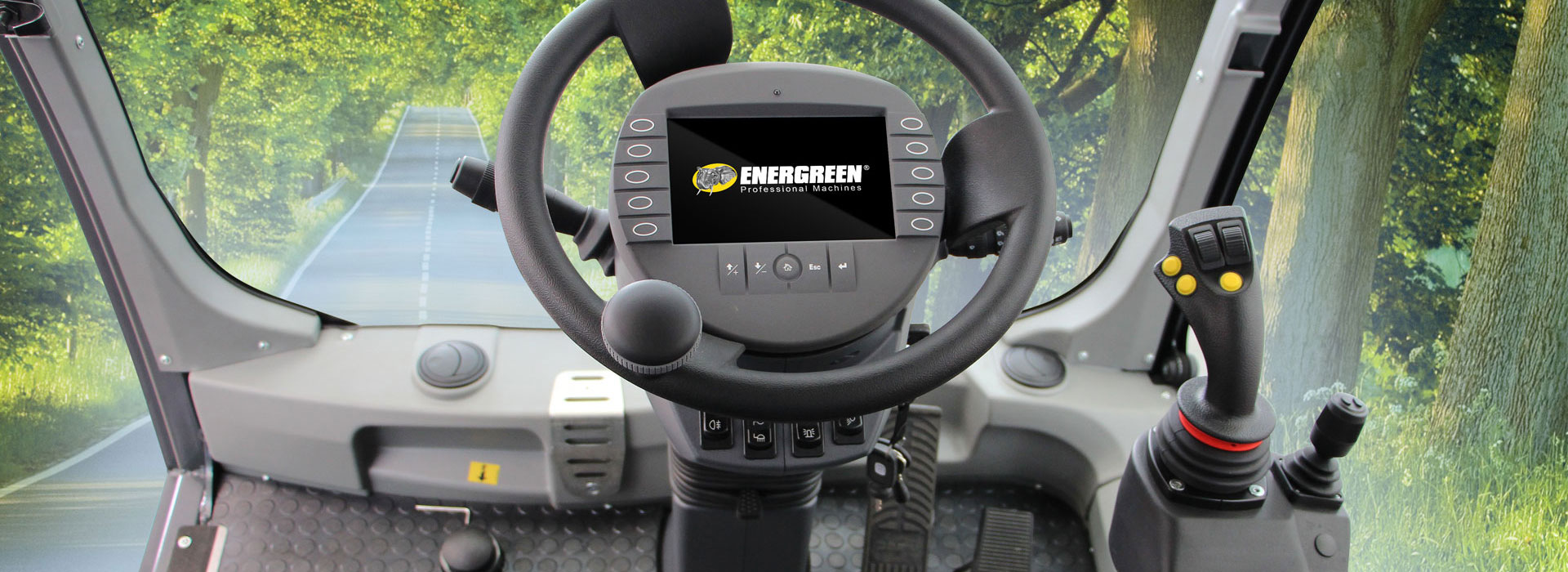

Visibility is a fundamental element in the correct use of the machines intended for mowing. ILF ATHENA makes this requirement one of its strengths. The large windshield allows the operator to have a valid and total view of his work.

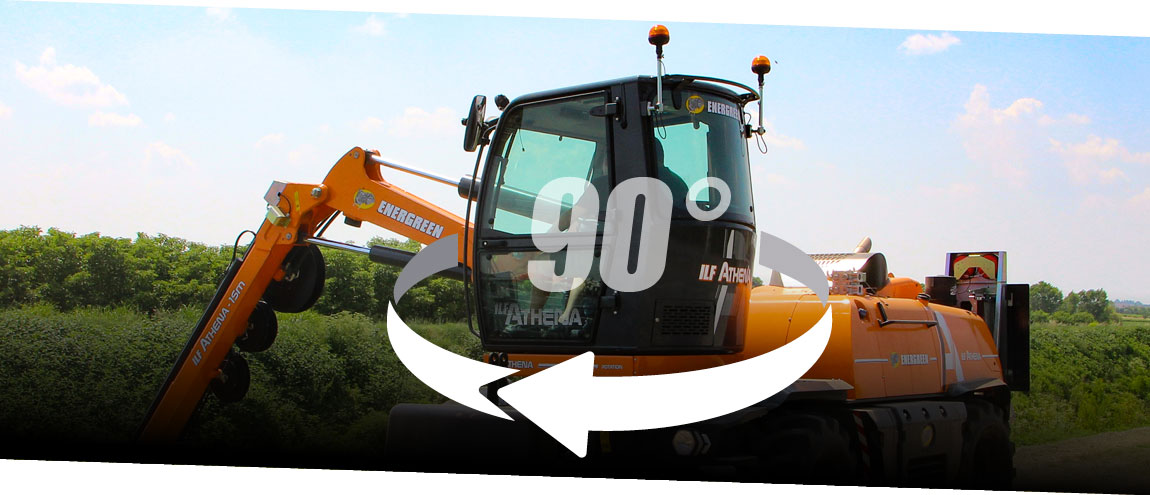

The cabin is certified in terms of safety by FOPS-ROPS tests against the risk of overturning and falling objects, is adequately soundproofed, equipped with an efficient air conditioning system and equipped with all those requirements necessary to ensure the operator a working environment definitely safe and comfortable. The rotation of the cab allows the mowing of the grass in both DRIVE directions, without the need to turn the machine with a significant reduction in time and labor costs. The rotated cabin allows the operator to maintain a correct body posture, avoiding stress and back or neck problems, as well as managing the work done in great comfort and attention.
The spacious cabin certified FOPS-ROPS is available in three versions, to make your work easier and more comfortable.
The control system (Joystick) is highly automated and includes a series of devices which allow the operator to draft the ground outline and to better focus on the working activity and environment. The hydraulic system is developed in four separated circuits in order to guarantee high handling performances and efficient productivity.
The professional brushcutter ILF Athena is the right choice for every application and represents an European high technological product in the market of the green maintenance thanks to its technological innovations, excellent work performances, operative versatility and safety. ILF Athena has been designed to satisfy every needs; indeed it is possible to chose not only the lengh and type of arm but also engine power and among different options.

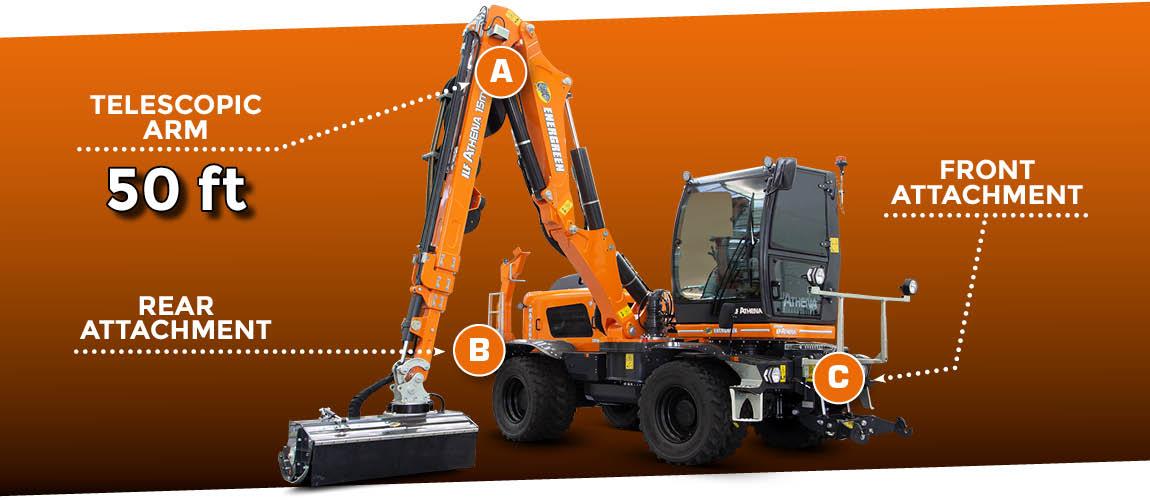

Energreen ILF Athena is a professional grass-cutting machine par excellence. Thanks to its innovative technological components, ILF ATHENA has unrivalled performances, high flexibility and working safety. The machine can be equipped with 50 feet telescopic arm, where, in addition to the traditional cutting head, it is possible to apply various tools. In the front, the machine can be equipped with lifter and PTO or DIN plate, in order to apply a front tool to be used at the same time with the cutting arm.
ILF ATHENA: DOUBLE PRODUCTIVITY

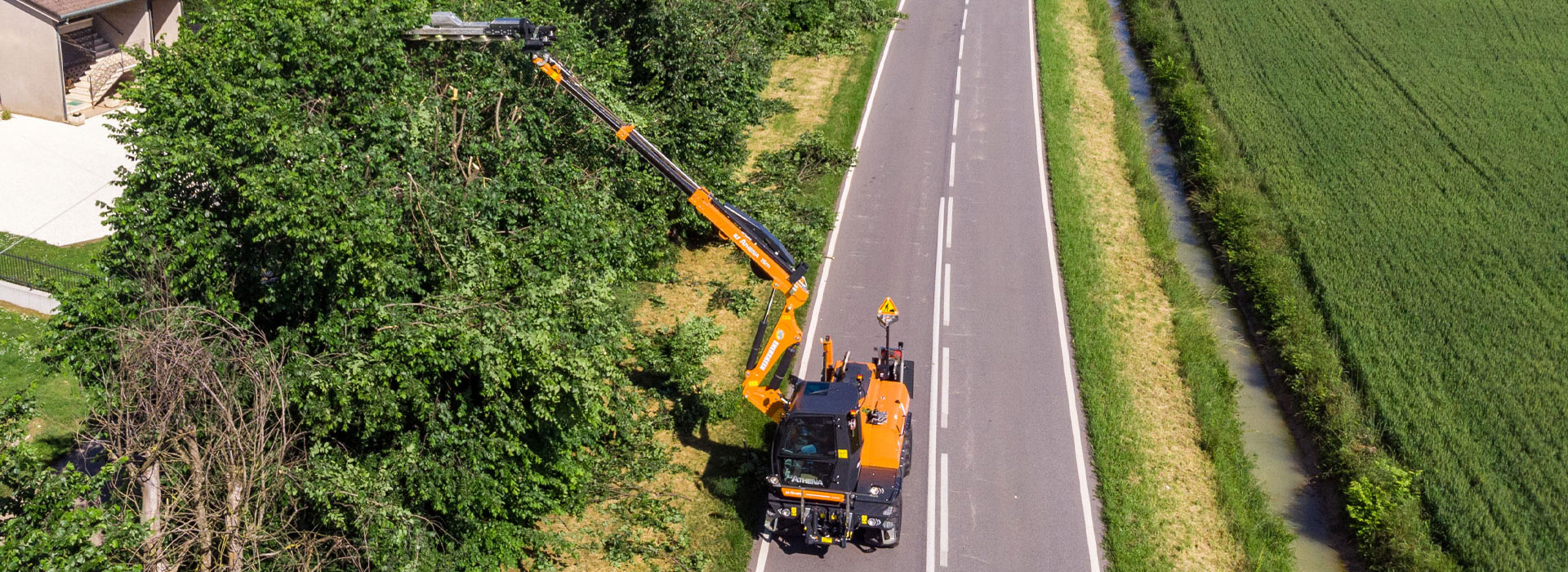

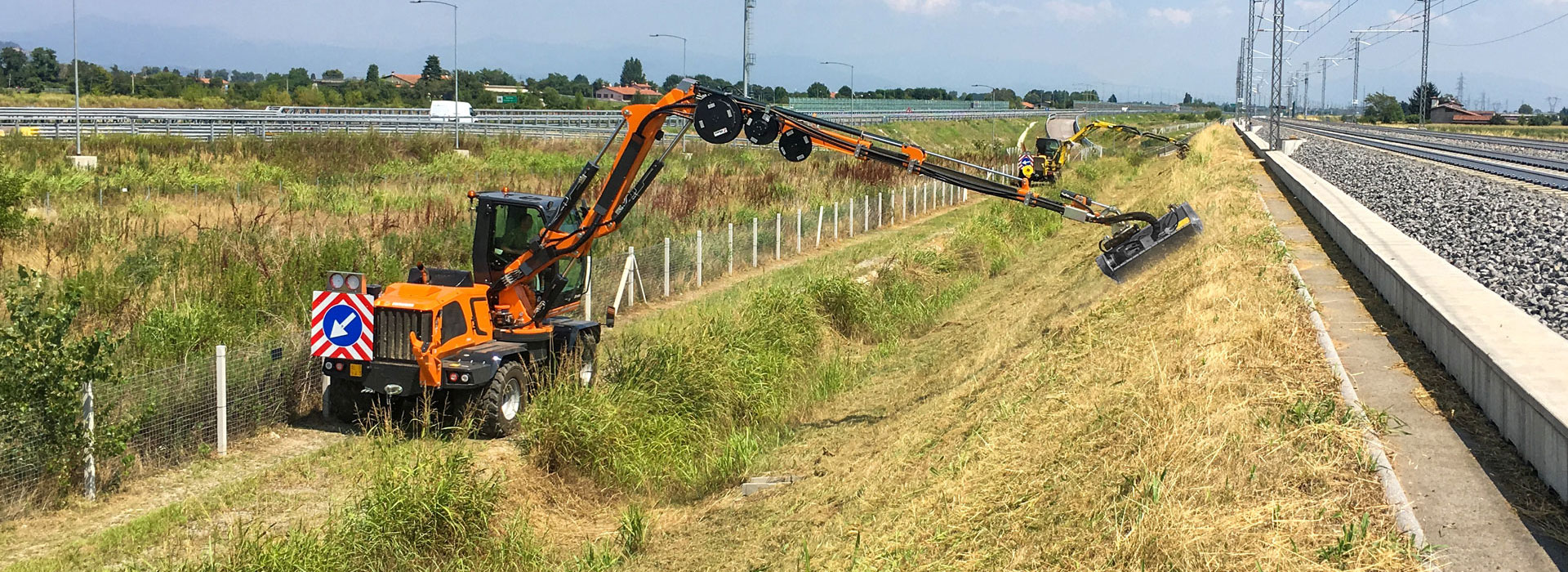

Energreen ILF ATHENA is equipped with a solid telescopic arm designed to work with an extension range up to 15 meters (50 feet), both in depth and in height. The special design underlines its qualities for works along the routes, even where there are security barriers up to 3 feet. The telescopic extension allows to easily reach even the furthest and narrowest areas for operating on the green maintenance always keeping the performance at the top.
| Technical Data ILF ATHENA | |
|---|---|
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Rotary Lamp | Switch in the Cabin |
| Air Conditioning | Electronic |
| Rear Window | Darkened Anti UV |
| Seat | Air Suspension, Adjustable |
| Power Socket for Devices | 12 V |
| Battery Switch | Automatic |
| Cabin Safety | FOPS-ROPS |
| Machine Weight | 18,000 kg |
| Engine Technical Data ILF ATHENA | |
|---|---|
| Brand | Deutz 6.1 |
| Type | 6-Cylinders Diesel |
| Power | 220 hp (160 kW) |
| Injection | Common Rail DCR |
| Emissions | TIER 5f |
| Alternator | 12 V - 150 A |
| Air Engine Intake | Pre-heated |
| Radiator | Intercooler |
| Fan | Reversible, Self-cleaning |
| Engine Data Visualization | Onboard Computer |
| Fuel Tank Capacity | 300 Liters |
| Hydraulic System Technical Data ILF ATHENA | |
|---|---|
| Pump and Motors in Closed Circuit: | |
| Cutting Head Pump | Pistons |
| Translation Pump | Pistons |
| Pump and Motors in Closed Circuit: | |
| Arm Movement (LS) | Pistons |
| Brakes System | Gear |
| Steering System | Gear |
| Hydraulic Distributor | 6 Sections |
| Hydraulic Oil | H46 Mineral |
| Oil Flow | 65 - 240 l/min |
| Oil Pressure | 210 - 480 bar |
| Flail Head Weight | 460 kg (1.5 m model) |
| Transmission and Brake System Technical Data ILF ATHENA | |
|---|---|
| Transmission | Hydrostatic |
| Traction | Permanent All-wheel Drive 4x4 |
| Speed Variation | 0 - 40 km/h |
| Manual Gearbox | 2 Gears |
| Wheel Alignment | Electronic Control |
| Front Axle | Oscillating |
| Front Axle Block | Hydraulic |
| Steering Axles | 2 Steering Axles |
| Axle Block | Front 100%, Rear 100% |
| Parking Brake | Negative |
| Service Brakes | 6 Discs |
