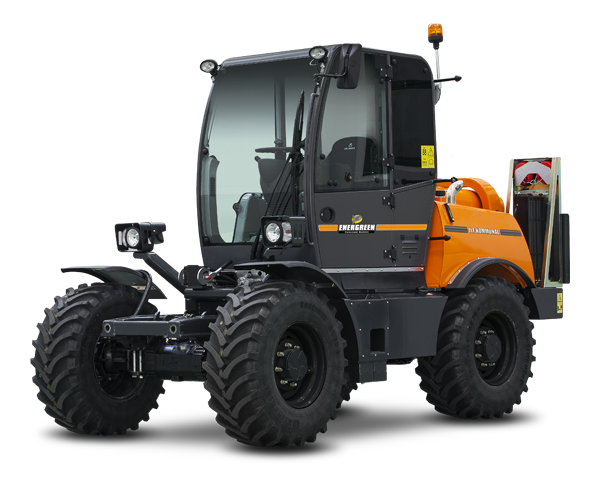

Energreen ILF KOMMUNAL is an extremely versatile machine, multipurpose and multifunction at full power able to perform any work done by a common tractor with telescopic arm more quickly, powerfully and productively . This machine is appropriate to work all year with different equipment; it is equipped with a particular special moving front system that allows to interchange all tools in few minutes, with the help of only one operator, without the employment of particular lifting means, all in complete safety.
ILF KOMMUNAL is an extremely safe and reliable self-propelled hydrostatic machine, in every work environment, thanks to the wide range of tools; indeed, it appears to be the best solution for councils, public entities bodies and administrations.

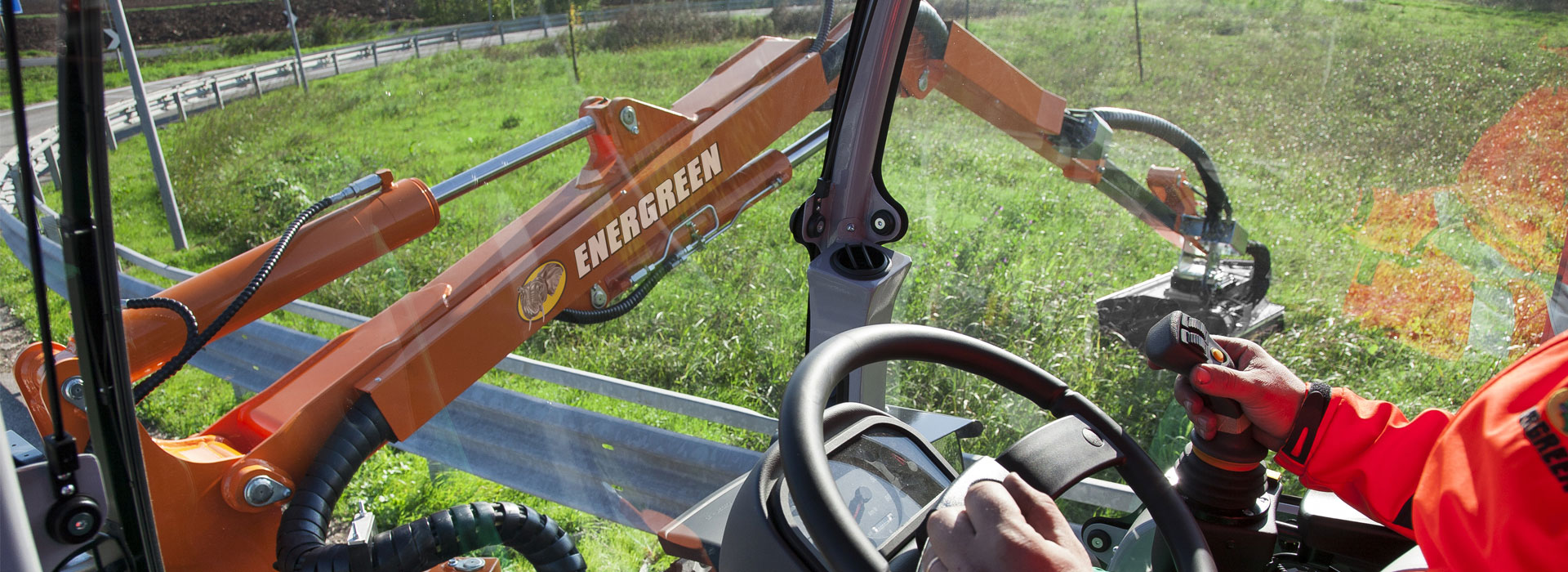

The first surprising feature inside the cabin of this self-propelled hydrostatic machine are the wide glasses, that guaranties maximum visibility at 360 degrees for a full control on the working area. The adjustable steering wheel, the comfortable seat and the ergonomic and intuitive devices system establish a strong feeling between the operator and the machine with its fluidity in all drives in order to make easier every day of hard work.
The spacious FOPS-ROPS approved cabin is available in three different versions, to make your work easier and more comfortable.
The cabin is approved according to FOPS-ROPS, ensuring protection against overturning and falling objects. It is equipped with a sealing system through soft seals on the fixed and mobile glazing, mounted on elastic brackets in the support points, resulting completely isolated and efficiently air-conditioned and making this multifunction machine suitable for work in dusty and noisy environments for many hours a day in full comfort, as it is in the Energreen philosophy.

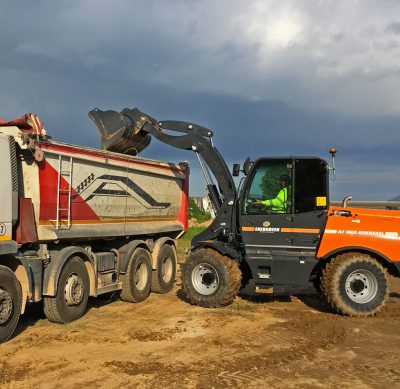

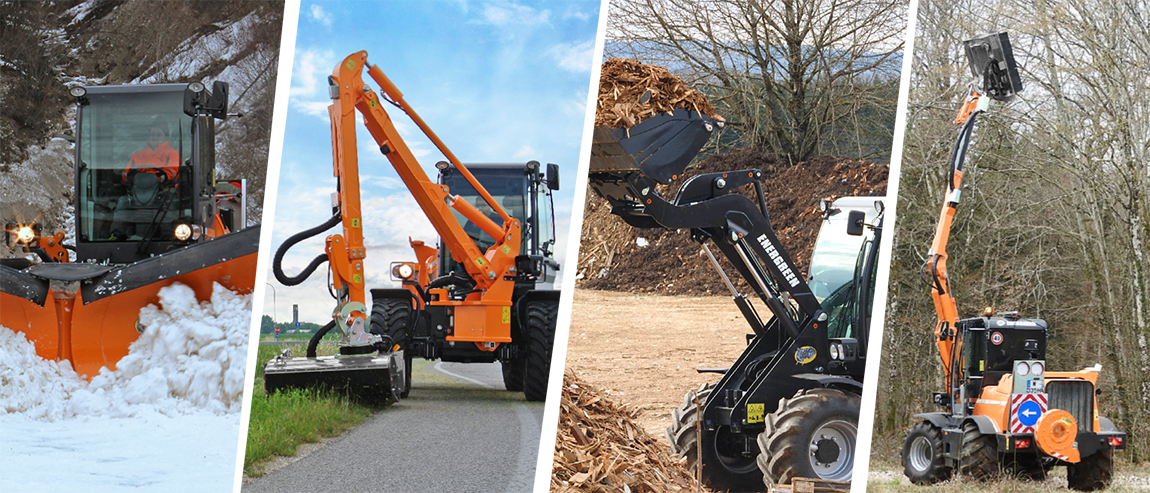

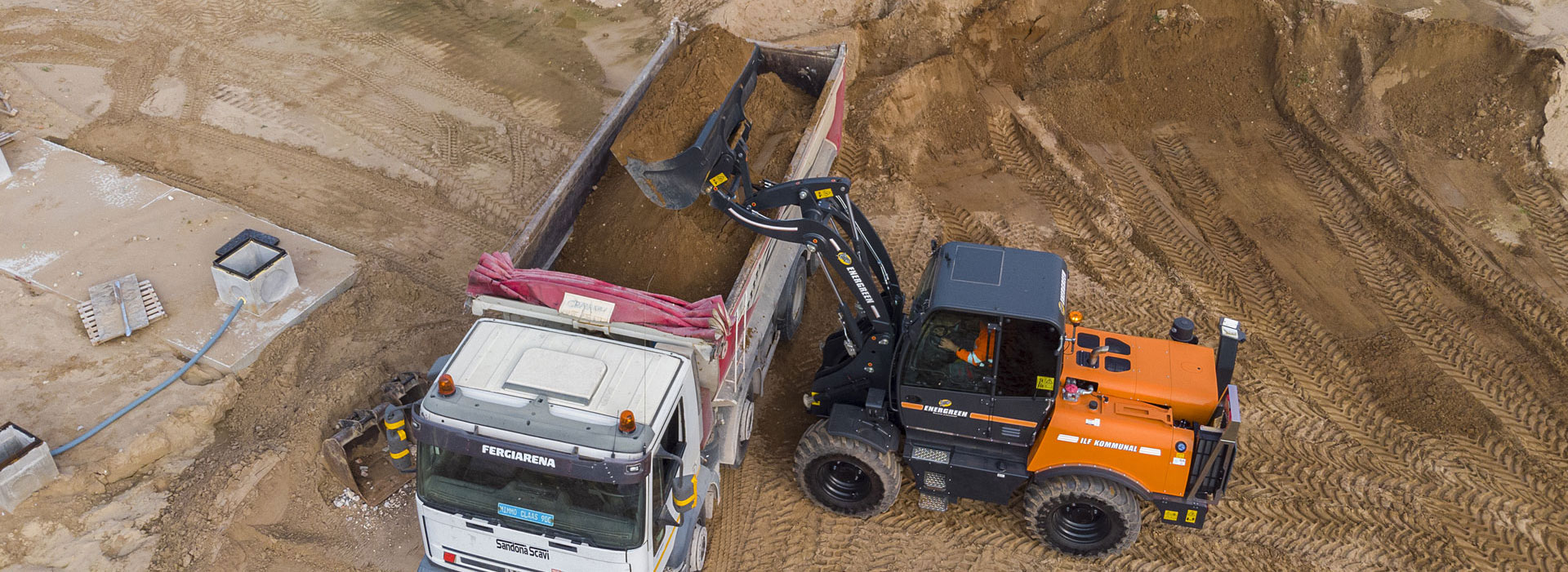

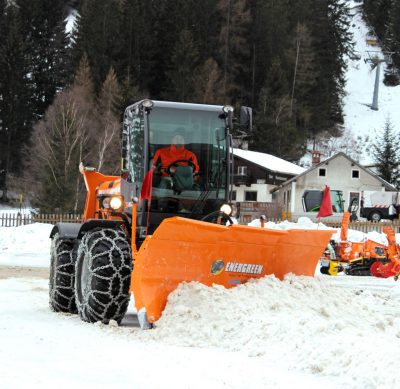

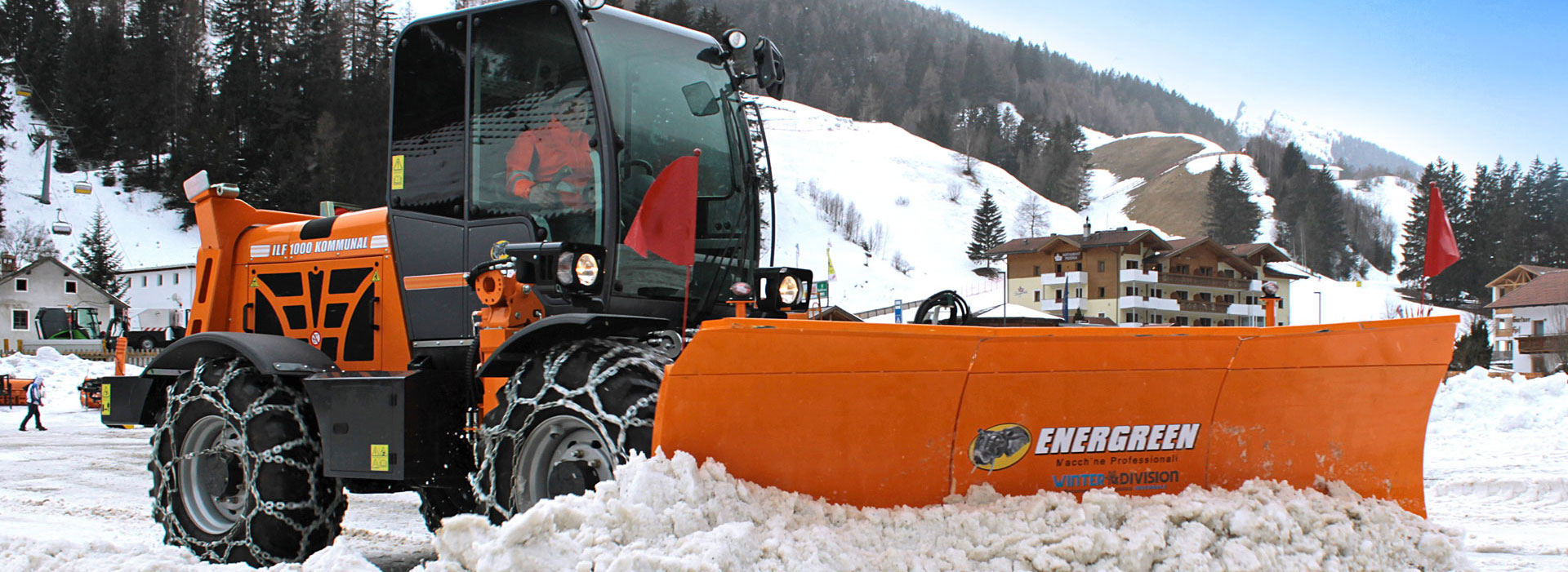

Energreen ILF KOMMUNAL is a multipurpose self-propelled hydrostatic machine, unparalleled for the operator who continuously or occasionally uses special equipment such as digging bucket arms, earthmoving shovels, snow blades or snow plows, hydraulic lifting forks, frontal equipment for mowing grass or on hydraulic arm, hedge trimmer, agricultural equipment with standard 3-point attachments with hydraulic lift and cardan shaft, brushes, special equipment on demand.
At the project basis of the Energreen ILF KOMMUNAL is the extreme configurability of this multipurpose machine. Further, the quick release and fastening system of the tool used allows a rapid reconfiguration of the vehicle, thanks to the wide choice of equipment available, to be able to switch from one type of work to another completely different using the same vehicle, with a considerable economy management costs; customized solutions are also available upon request and specific design based on the customer’s needs.

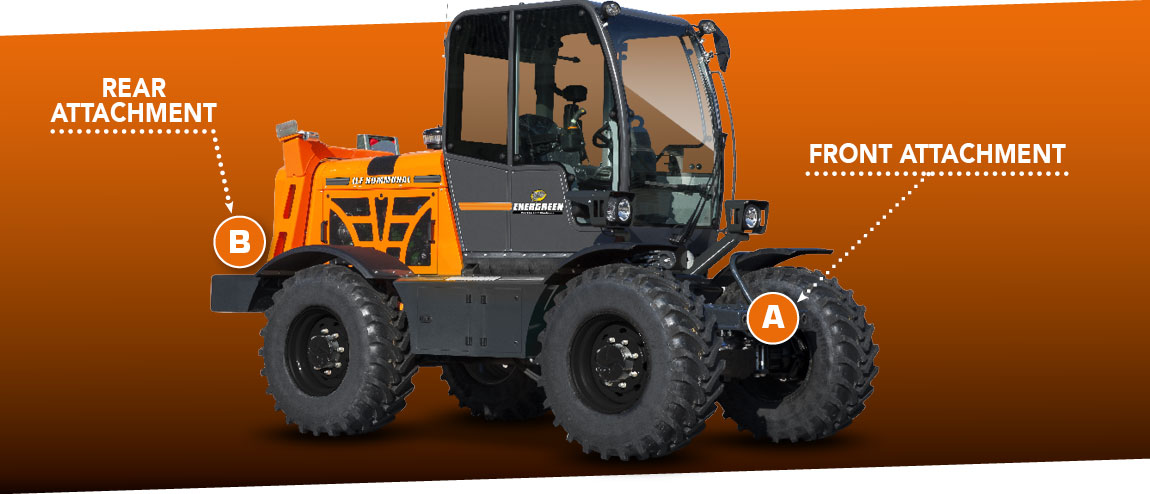

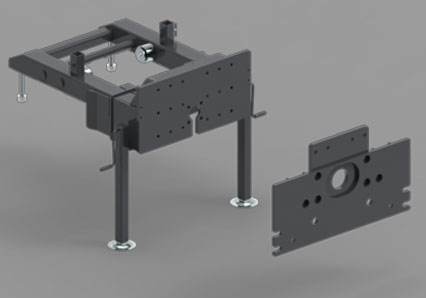

A. UNIVERSAL FRONT ATTACHMENT
BY PLATE DIN

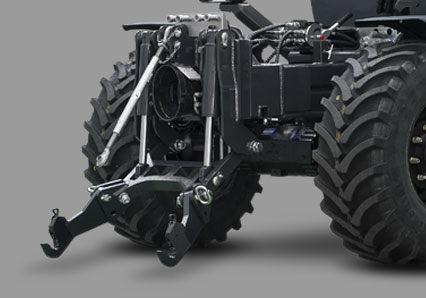

A. FIXED 3-POINT REAR ATTACHMENT
"HERCULES"

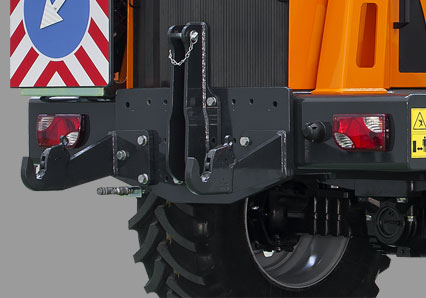

B. FIXER REAR 3-POINT
ATTACHMENT

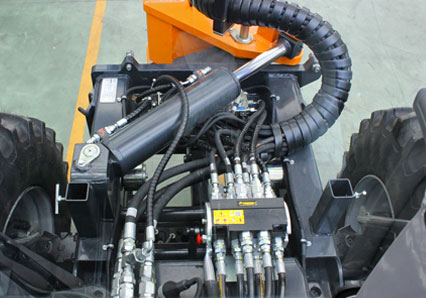

A. FRONT ATTACHMENT
WITH QUICK CONNECTION

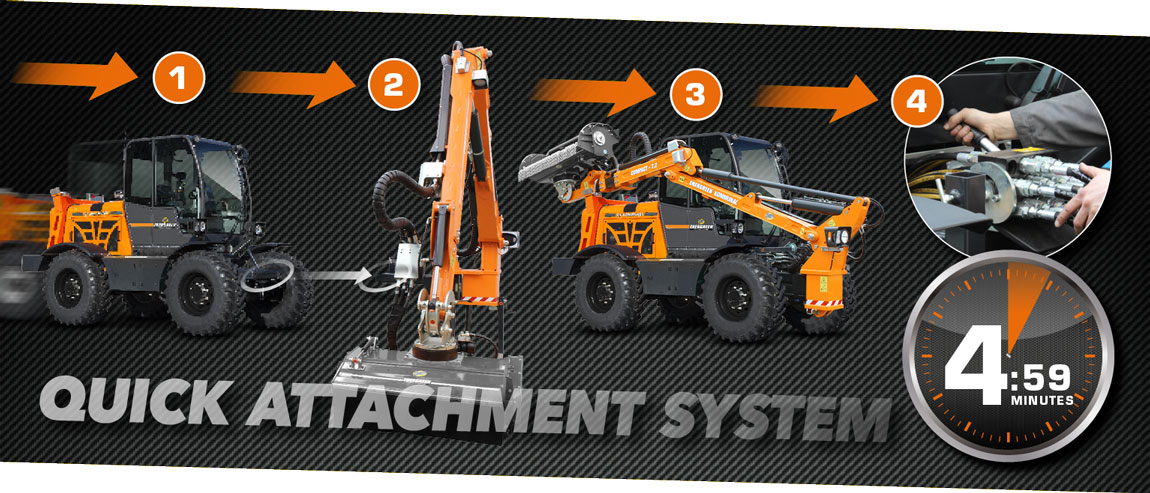

The need to be able to hook the equipment with a single operator, without the need to seek physical help from other people, inspired the design of the exclusive coupling system by Energreen ILF KOMMUNAL. The procedure is simple: align the machine with the equipment to be used, insert the guides, block everything by the hydraulic coupling device, connect all the hydraulic circuits with a single plate, … and ready for maximum operation! Also new is the interface for engaging the hydraulic connections, which being a single connection plate allows you to not accidentally reverse the hydraulic circuits, also equipped with a system for discharging residual pressures to make it easy to lock/unlock the engagement.
1. MACHINE WITHOUT EQUIPMENT
2. ALIGN THE MACHINE TO THE EQUIPMENT
3. INSERT GUIDES AND ATTACH THE EQUIPMENT
4. CONNECT ALL THE HYDRAULIC CIRCUITS BY USING A SINGLE PLATE

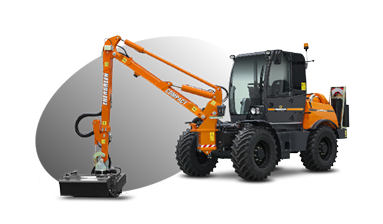

The COMPACT arm has been designed to work in tight spaces. Its geometry enhances the features of the machine. It allows to work side by side to the machine wheels, to mow hedges or bushes vertically up to a height of 27* feet. The arm in these configurations is always inside the machine profile, allowing to work always within a vehicle footprint of 7 to 8 feet*.
* Variable dimensions depending on the equipment.

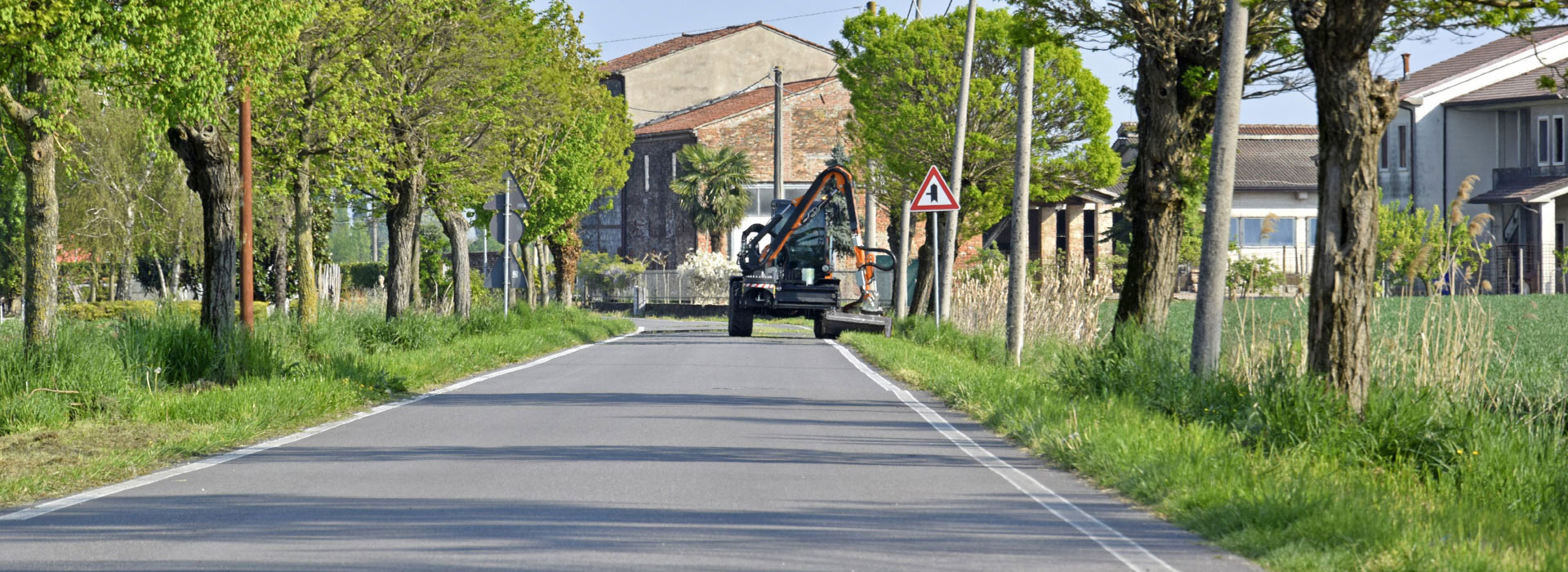

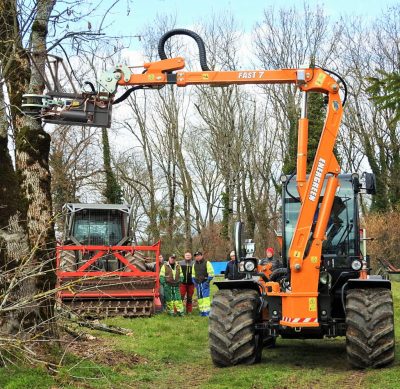

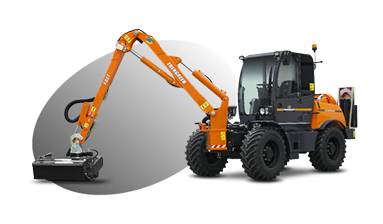

The FAST telescopic arm has been designed to work with an extension up to 23 feet wide* and 27.5 feet in height*. Its particular geometry enhances the characteristics for road maintenance where you want a combination of mowing roadside and finishing work far from the roadside. The sturdy telescopic extension allows greater work agility and maximum performance even in difficult situations.
* Variable dimensions depending on the equipment.

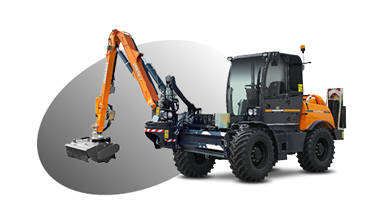

ORBITAL 7 is a sturdy telescopic arm designed to work on both sides of the roadway while maintaining minimum footprint on the road. This is possible thanks to a 290 degrees hydraulic rotator and a hydraulic shifter that allows it to perform a horizontal shift from right to left and viceversa.
The wide range of professional equipment available has been specially developed for use and control with the Energreen ILF KOMMUNAL self-propelled hydrostatic machine.
| Technical Data ILF KOMMUNAL | |
|---|---|
| Cabin Safety | ROPS - FOPS (1° Level) |
| Steering Wheel | Adjustable |
| Joystick | Electronic |
| Seat | Air Suspension, Adjustable |
| Drive | 4x4 Permanent |
| Speed Variation | 0 - 40 km/h (continuous) |
| Manual Gearbox | 2 Gears |
| Machine Weight without Equipment/ with Equipment | 6520 kg / 10,000 kg |
| Engine Technical Data ILF KOMMUNAL | |
|---|---|
| Brand | Deutz TCD 3.6 |
| Model | 4-Cylinder Diesel |
| Power | 135 HP (100 kW) |
| Injection | Commonrail 4 Valves for Cylinder |
| Exhaust Emissions | EPA TIER 4f |
| Alternator | 120 A |
| Fuel Tank | 180 Liter |
| Fan | CLEANFIX (Optional) Reversible self-cleaning |
