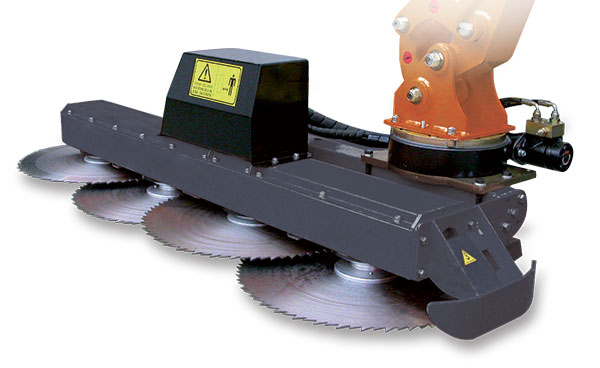

Energreen Cutter Disc Bar Attachment

Energreen
SAW BAR
Cutter Discs Bar

Brochure

Energreen SAW BAR is a professional SAW BAR for forest cutting. The bars are constructed with a robust high-strength steel frame and have a working width from 43" to 103". They can mount from 2 to 5 cutting discs with a diameters between 24" and 35". The discs are made of forged tempered steel and moved by a hydraulic gear motor through a belt drive. The are used for pruning shrubs and small plants up to a maximum diameter of 6". They are designed to be applied through hydraulic systems to all arms of Energreen ILF self-propelled machines..

MODEL WIDTH NO. DISCS DISCS
DIAMETER		 CUTTING
DIAMETER		 WEIGHT
SAW BAR - 6002 43 in 2 24 in 6 in 332 lbs
SAW BAR - 6021 62 in 3 24 in 6 in 429 lbs
SAW BAR - 6004 80 in 4 24 in 6 in 520 lbs
SAW BAR - 6041 99 in 5 24 in 6 in 617 lbs
SAW BAR - 6502 44 in 2 26 in 6 in 337 lbs
SAW BAR - 6521 66 in 3 26 in 6 in 438 lbs
SAW BAR - 6504 82 in 4 26 in 6 in 533 lbs
SAW BAR - 6541 101 in 5 26 in 6 in 632 lbs
SAW BAR - 7002 46 in 2 28 in 6 in 341 lbs
SAW BAR - 7021 65 in 3 28 in 6 in 451 lbs
SAW BAR - 7004 84 in 4 28 in 6 in 551 lbs
SAW BAR - 7041 103 in 5 28 in 6 in 650 lbs
SAW BAR - 9001 36 in 1 35 in 6 in 335 lbs
SAW BAR - 9002 60 in 2 35 in 6 in 440 lbs

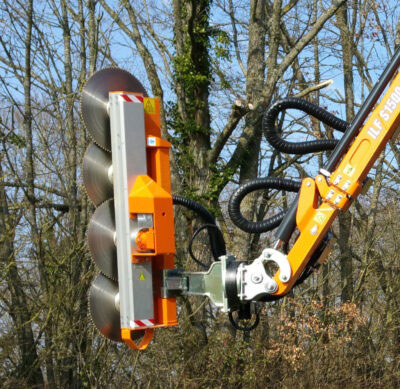

Energreen Saw Bar

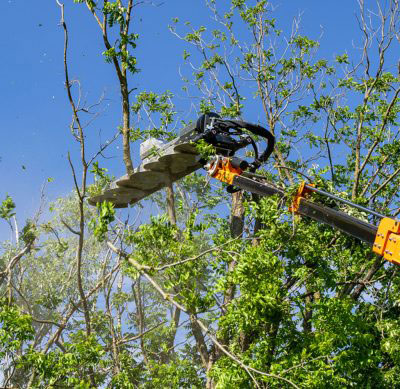

Energreen Saw Bar

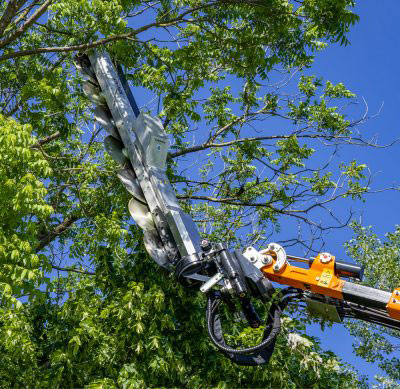

Energreen Saw Bar

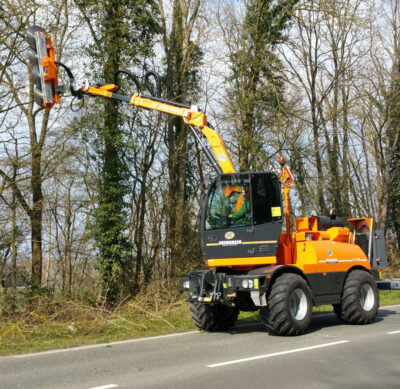

Energreen Saw Bar
