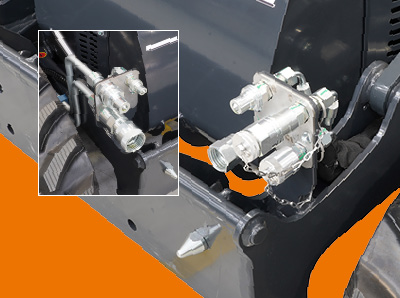

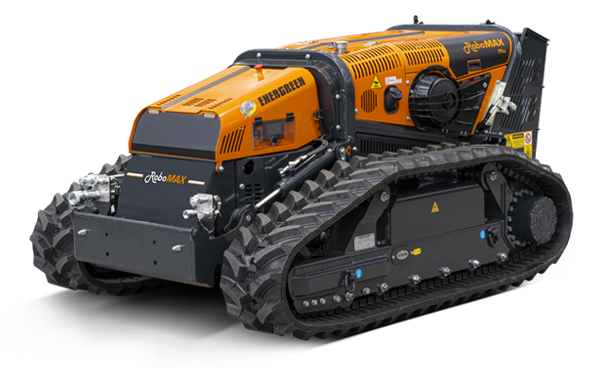

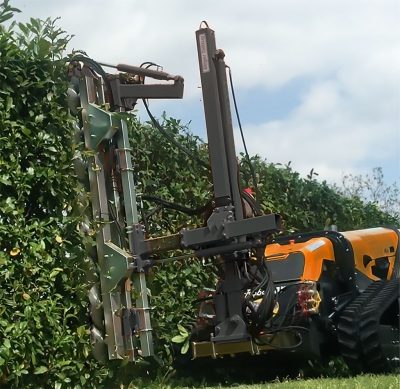

Energreen RoboMAX is a robust forestry mulcher that can easily work in different tasks and works. The standard equipment includes two hydraulic double-effect functions. Designed to satisfy the most different needs, Energreen RoboMAX can be defined as a multifunctional remote controlled machine, with power and performance comparable to a traditional tractor with several attachments. The main features that make the difference about this machine among all other robots are power, reliability, strenghtness, high performance and versatility and a powerful Diesel 75 Hp engine.
55
75
12

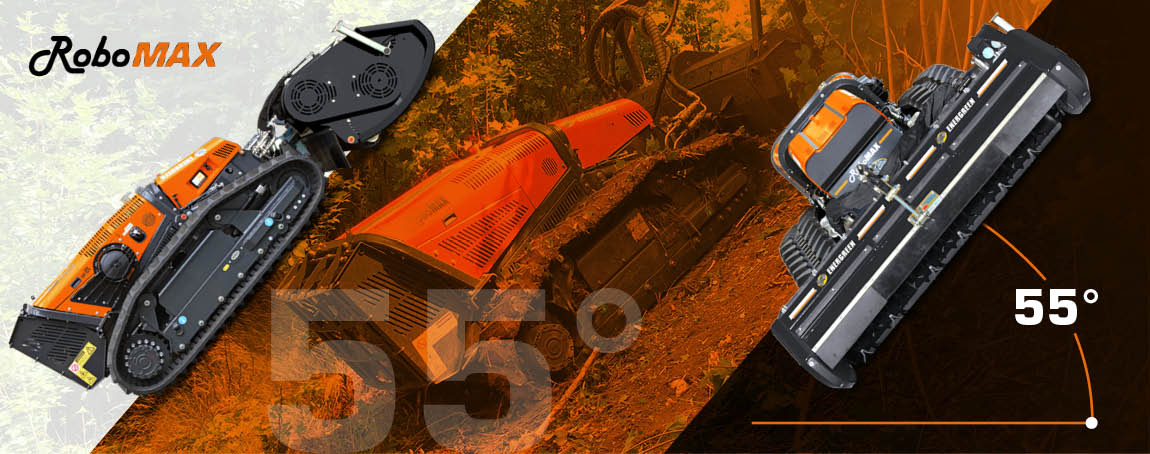

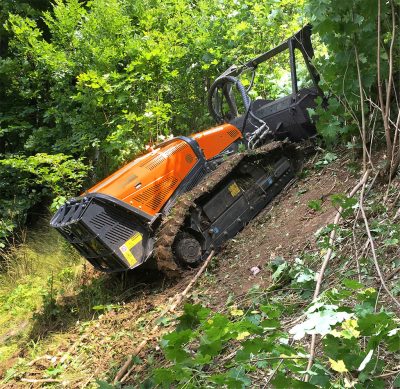

The special design of the tracks and its tensioning system makes RoboMAX a safe machine for working on slopes up to 55° in any direction: hilly and mountainous areas, slopes, embankments, and in all those places where the adherence is very low and where a machine for high slopes is required.

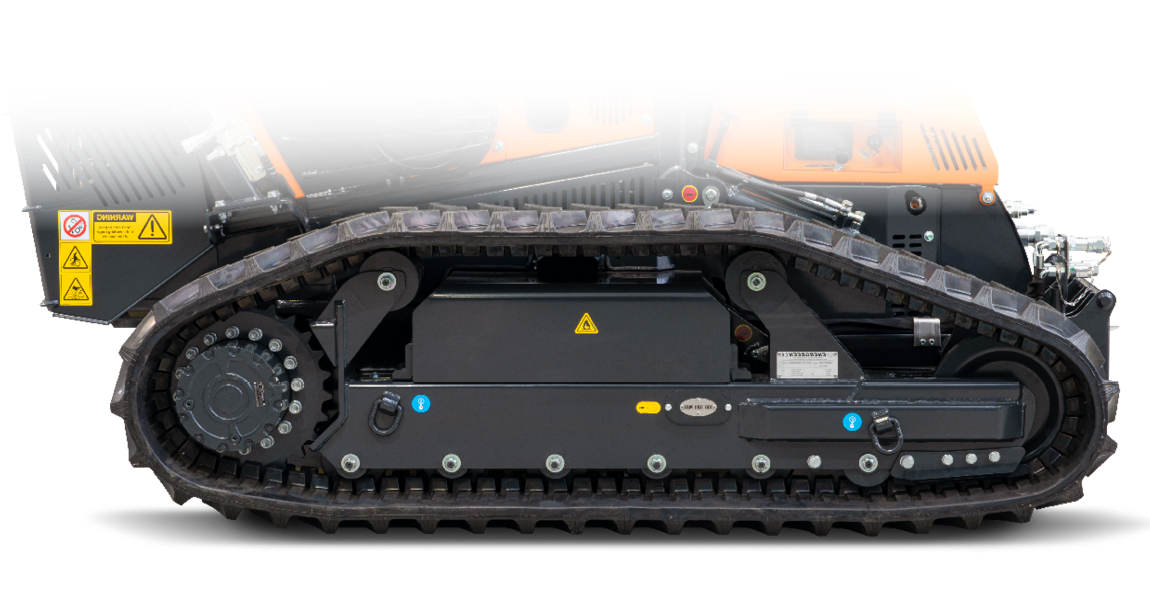

The new RoboMAX tracks profile allows a better adherence of the machine on the ground; in this way the grass is preserved, and it is always possible to work with an excellent grip and adherence in each direction on all kinds of surfaces.

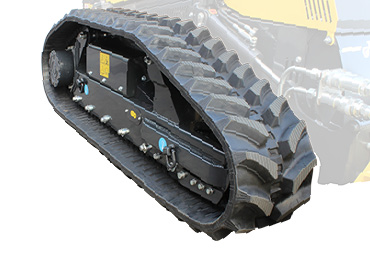

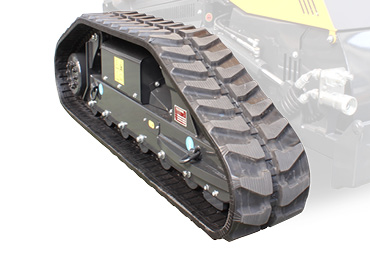

Ideal tracks for delicate surfaces
Ideal tracks for forestry works
or areas with dense vegetation

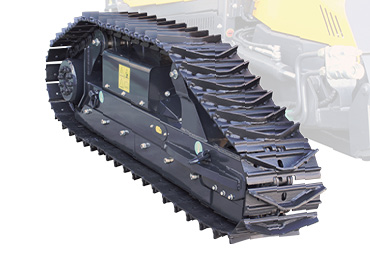

Ideal tracks for rocky
or wet surfaces

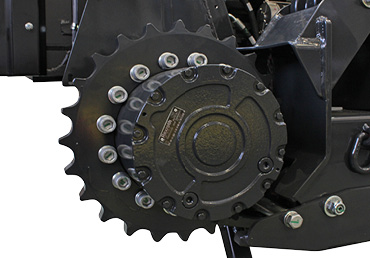

Cogwheel of the tracks in tempered steel

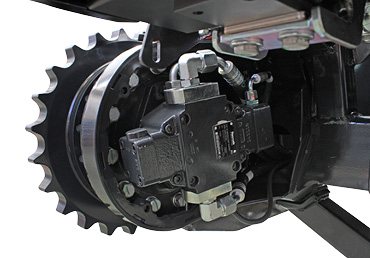

Adaptor with hydraulic motor

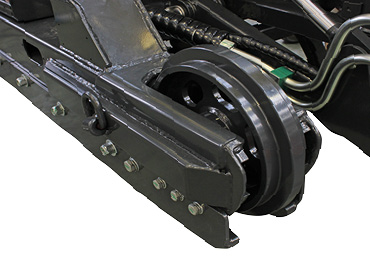

Track tensioner with safety spring
RoboMAX is a remote-controlled forestry mulcher, able to work in complete safety in hilly and dangerous areas, with slopes up to 55° in any direction. The exceptional stability of the machine is given by a low center of gravity, a special oil sump and rubber tracks for an excellent grip even in mountainous zones. The safety of operators is one of our targets; the use of the remote control with up to 492 ft range avoids several work risks to the operator: noise, vibrations, exposure to exhaust emissions, spray of cut vegetation or debris, etc.

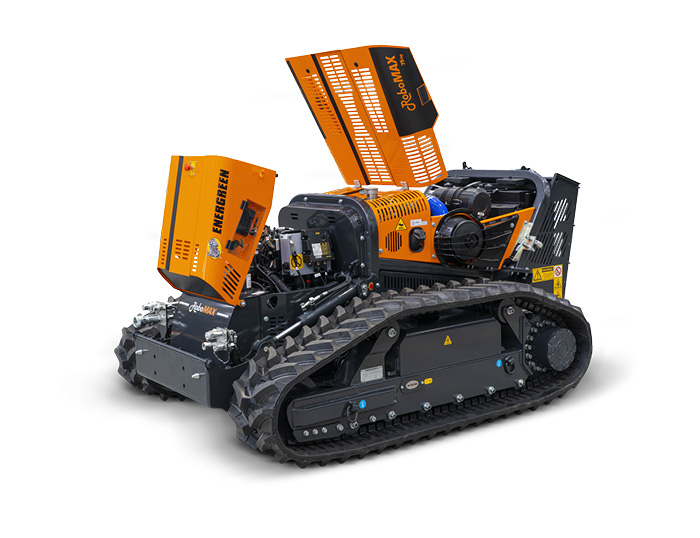

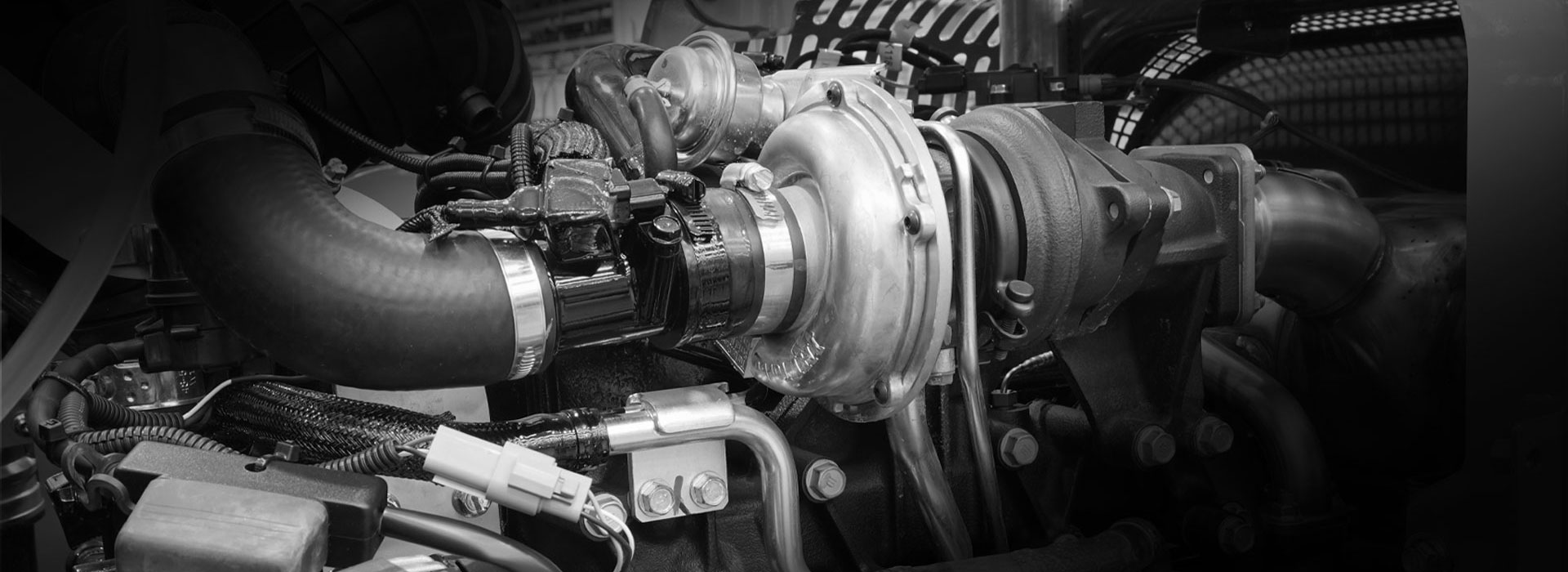

RoboMAX is built with an ultra-resistant steel to ensure a long duration; all the components are tested and certified to ensure the maximum reliability and safety.
Born to satisfy the most difficult needs, RoboMAX can easily be defined as a remote-controlled grass cutting machine with power and performances comparable to a classic grass cutting arm for a tractor. These fundamental characteristics distinguish this machine from any other robot used for grass cutting: power, reliability, strength and high efficiency.

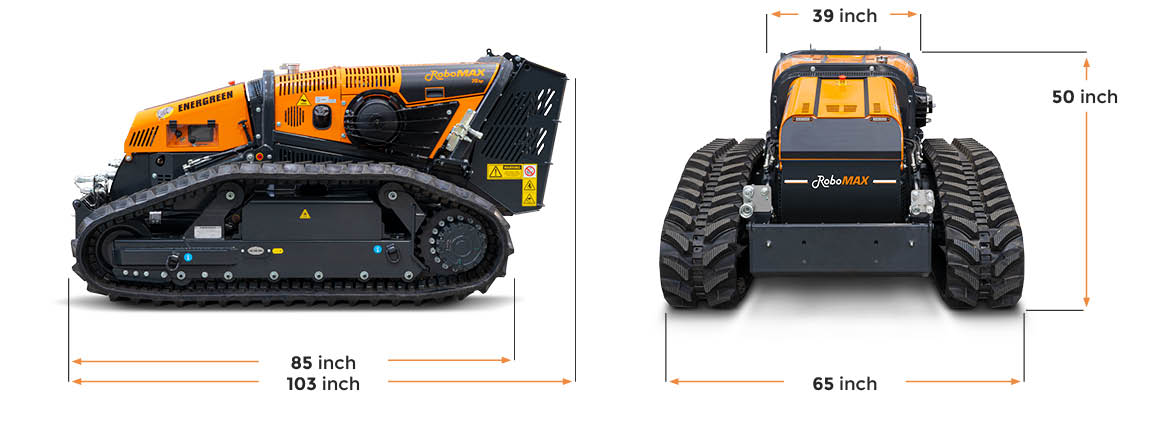

| Technical Data RoboMAX | |
|---|---|
| Maximum Slope | 55° |
| Transmission | Hydrostatisc |
| Low Range Speed | 0 - 1,55 mph |
| High Range Speed | 0 - 3,41 mph |
| Machine Weight* | 5445,41/5820,20 lbs |
| * Without equipment, with rubber tracks / steel tracks | |
| Engine Technical Data RoboMAX | |
|---|---|
| Brand | Yanmar |
| Model | 4-Cylinder Diesel |
| Power | 75 HP (55 kW) - Stage V |
| Fuel Tank Capacity | 16 gal |
| Working RPM | 2500 rpm |

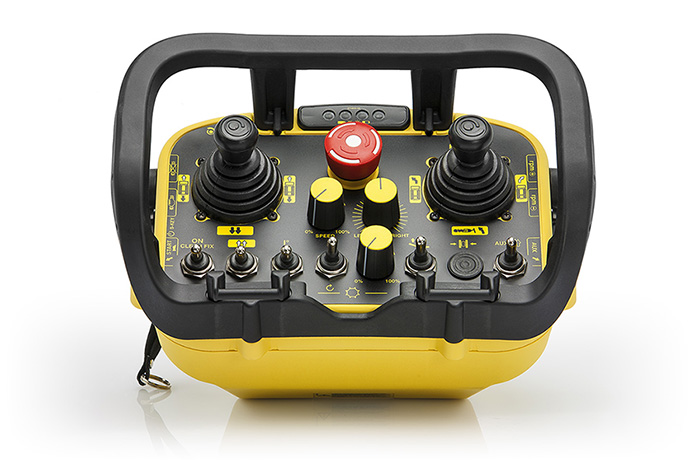

THE LIGHTWEIGHT REMOTE CONTROL, INTUITIVE AND EASY TO MASTER
Two large joysticks provide precise control of movement, steering and flailhead height. The simple layout of the controls allows the operator to start working immediately. Speed and steering control can also be adjusted to better satisfy personal needs.
| Remote Control Technical Data | |
|---|---|
| Brand | Autec |
| Radio Frequency | 915 Mhz (US) |
| Working Range | 492 ft |
| Joystick | Proportional |
| Battery | Rechargeable |
| Autonomy | 18 h |
| Overall Dimensions | 10,23 x 7,87 x 7,48 inch |
| Weight | 4.40 lbs |

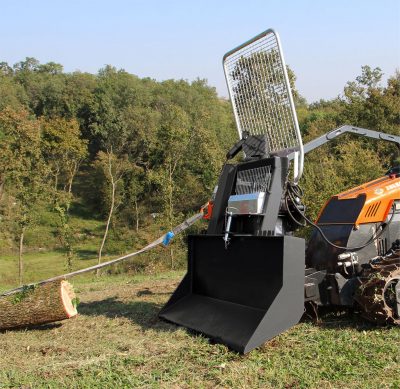

A selection of professional equipment specially developed for the best use and control of the forestry mulcher RoboMAX.
